8x8 magnetic core memory matrix PWB
- SKU:
- 1722-PWB
Description

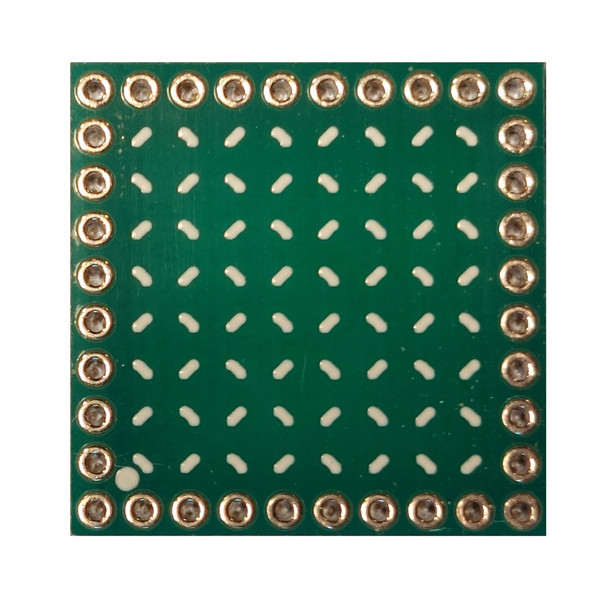

8x8 core matrix PWB
- 0.062 thick
- 20.4 x 20.4mm
- 64 marks indicating core placement
- PWB Connectors (H): 2 x Adam Tech 2PH1-10-UA 10x1x2mm header
- PWB Connectors (V): 2 x Adam Tech 2PH1-08-UA 8x1x2mm header
- Mating connectors (H): 2 x Adam Tech 2RS1-10-G 10x1x2mm socket
- Mating connectors (V): 2 x Adam Tech 2RS1-08-G 8x1x2mm socket
- Connector set: 4 headers and 4 sockets
- Ferrite cores: 1.25mm dia x 0.4mm thick
- Assembled Matrix: 1722
