Description

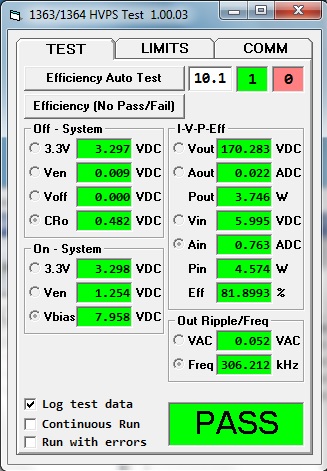

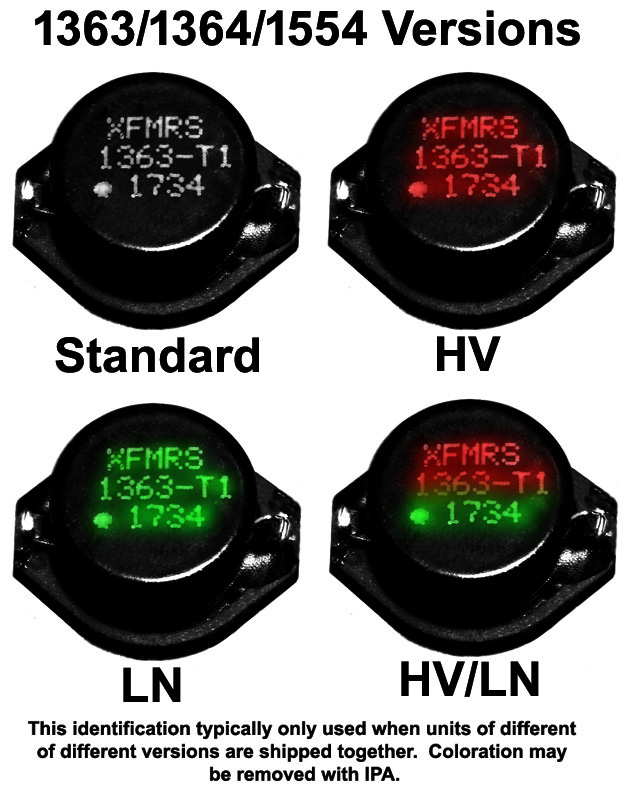

Documents: Datasheet / Versions / Radj / Radj Excel / Radj PWM Excel / ATE / Testdata / Gallery
Description: The 1363HVLN high voltage power supply is a miniature flyback boost converter operating from 2 to 16VDC input with an output of 150 to 250VDC set by a single resistor to ground. An enable pin allows the module to be controlled by an external logic signal drawing only 40uA in shut down.
- PFM suppression enabled.
- Output capacitor increased from 1 to 2uF vs the standard 1363.
- This is a popular option for tube preamp enthusiasts.
