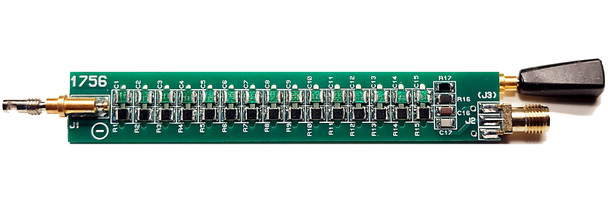

10KV 1000:1 passive probe (PWB only)

Schematic

     The 1756 is a 1000:1 passive scope probe PWB

Resistors

• 15 4.99M resistors for a total of 75M
• 1250V rating each resistor
• 1% tolerance
• 90mW at 10KV, rated 360mW each resistor

Capacitors

• 15 50pF mica capacitors series total 0f 3.333pF
• 1000V rating each capacitor
• 1% tolerance
• +/-25ppm/C tempco
• Output tuned for 1MOhm and 15pF load

Connectors

• Output connector: SMA
• Input/Ground connector: Pomona 3277 mini banana

PWB

• 3.600" long x 0.600" wide x 0.062" thick
• Sized to fit inside a 5/8" tube
• 1mm slots under each input R and C for high voltage potting
