SMT proto breadboard adapter - 16 pin
- SKU:
- 1751
Description

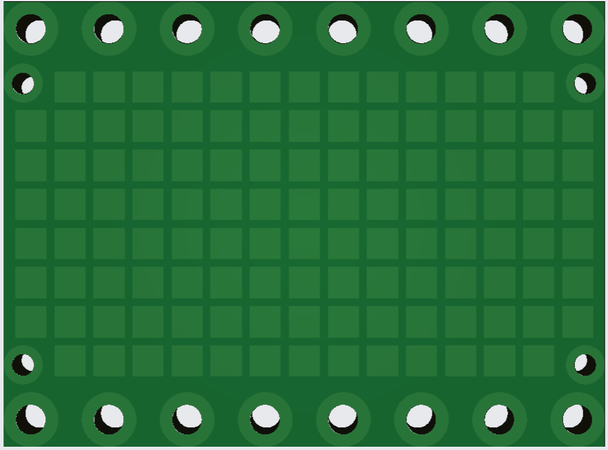

The 1751 is a 16 pin SMT prototyping board for use on solderless breadboards with 0.10" pin pitch with 0.50" row spacing. The underside is a copper plane with 4 connection vias at the corners but no connection to any of the header pins. The SMT area consists of 116 0.04" square pads on 0.05" centers arranged in a 15 x 8 grid.
