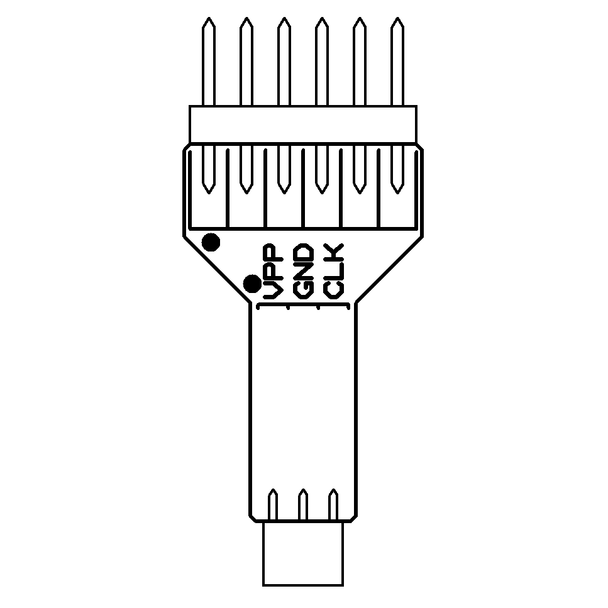

PIC ICSP 2mm pitch female adapter

Schematic

     The 1750x adapts the MPLAB PICKIT In Circuit Debugger (ICD) In Circuit Serial Programming (ICSP) 6 pin SIP connection to a 2x3 2mm or 0.10" pitch array.  Select the option below that best suites your programming needs...

TARGET CONNECTION OPTIONS:

• All: The ICD connection is a 6 pin 0.100" pitch SIP male header
• 1750M: 6 pin 2x3 2mm pitch male header
• 1750F:  6 pin 2x3 2mm pitch female socket
• 1750P:  6 spear point pogo pins in sockets in a 2x3 x 2mm pattern
• 1750M1: 6 pin 2x3 0.10" pitch male header
• 1750F1: 6 pin 2x3 0.10" pitch female socket
• 1750P1: 6 spear point pogo pins in sockets in a 2x3 x 0.10" pattern

     The pogo pins are mounted in sockets for easy replacement should they become worn or otherwise damaged.
