19 x 14 0.10" pitch perf board
- SKU:
- 1402
Description

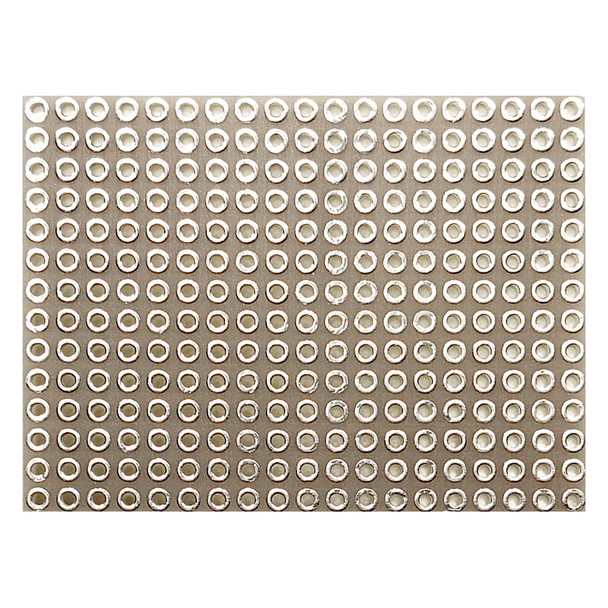

The 1402 is a small 19 x 14 hole x 0.10" pitch perf board for prototyping small through hole and SMT circuits.
Note: When prototyping with ceramic capacitors, avoid using large amounts of solder on the end terminations! It is common to build up circuit paths using solder but this can lead to the end caps breaking off due to the shrinkage of solder when it cools.
SPECS:
- Pads: Both sides
- Hole count: 19 x 14
- Hole pitch: 0.10"
- Hole diameter: 0.040"
- Pad diameter: 0.080"
- Copper weight: 1Oz surface and 0.5Oz hole plating
- Board thickness: 0.062"
- Board size: 1.90 x 1.40"
