1363/1364 Breadboard adapter

Schematic / HVPS Datasheet

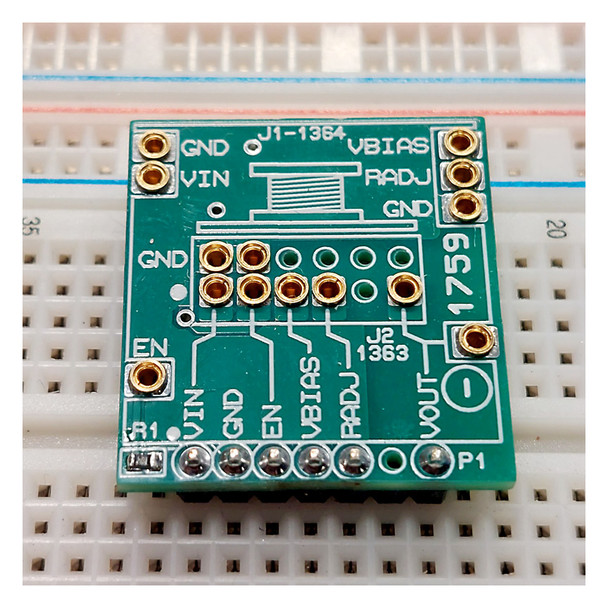

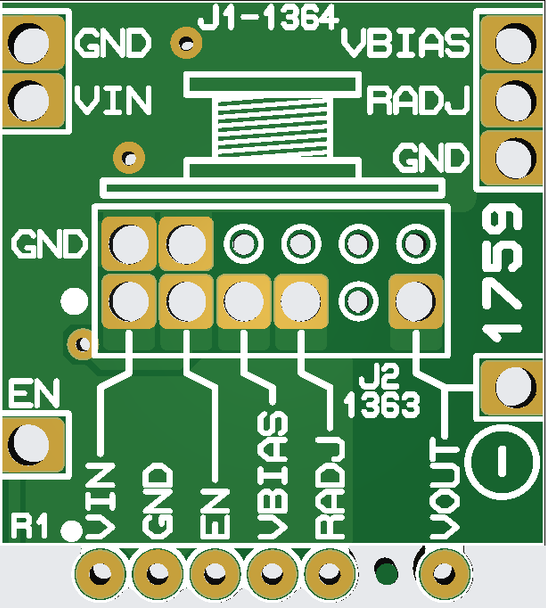

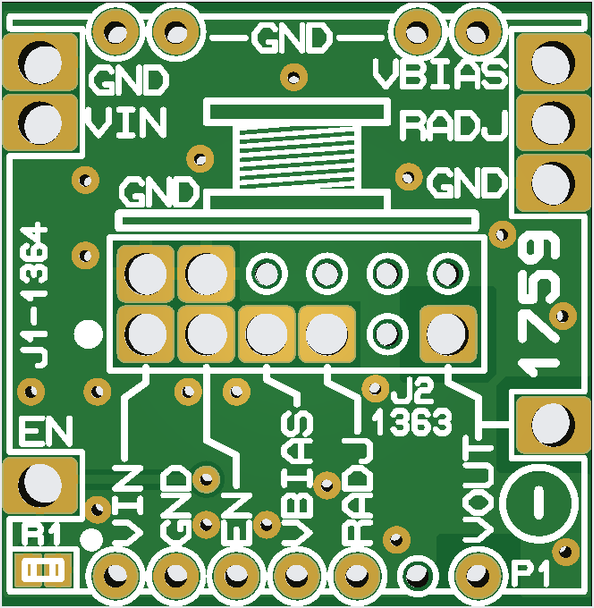

     The 1759 adapts the 1363 and 1364 HVPS modules for use on a solderless breadboard.  All signals are brought out to a 7 pin 0.1" pitch header at the bottom of the board with all signals labeled. This adapter makes use of Mill-Max 0327-0-15-15-34-27-10-0 deep sockets for a minimum vertical stack up.

Note: The 1364 was modeled after the 1329 30W HVPS which had the pin row spacing (0.850") and the board outline (0.950" square) designed for potting in a 1" square format.  This left the module unable to be plugged directly into a breadboard and the 1363 uses a 2x6 header which again, precludes direct connection into a breadboard... The 1759 adapter addresses this issue for both of these modules.

Adapter Specs

• Mounted height: 0.225"
• Adapter size: 1.00" x 1.075"
• Interface: 7 pins with blank next to HV output
• Enable pull down: 100K
